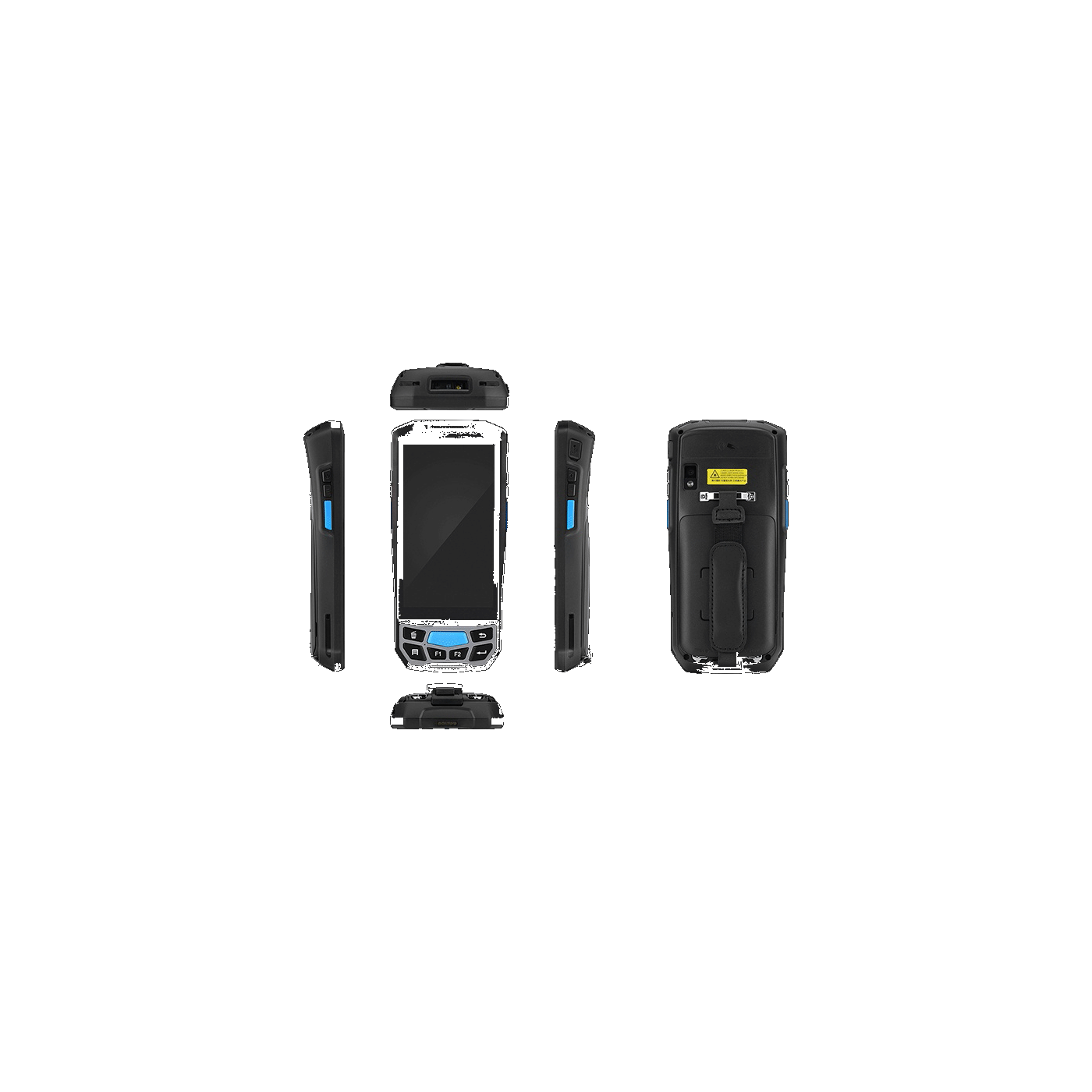

ID76700 Handheld Terminal
\nThe ID76700 is a newly developed handheld terminal specifically engineered for reading low-frequency 134.2 kHz animal microchips and electronic ear tags. It supports all tags compliant with the ISO11784/5 FDX-B standard, ensuring accurate and reliable identification performance.
\nDesigned with both functionality and aesthetics in mind, the ID76700 features a sleek, modern appearance and a 5-inch high-definition display for clear and intuitive operation. The practical physical buttons provide convenient, user-friendly control in various working environments.
\nThe device is equipped with an 8-megapixel high-definition camera, with optional autofocus, flash, anti-shake stabilization, and macro shooting capabilities, allowing users to capture clear images when needed.
\nEach ID76700 package includes a USB data cable, a dedicated charging adapter, and a rechargeable battery, providing everything required for immediate use.
\n\n \nSpecification \n
| Performance | \n|
| Quad core | \n|
| CPU | \nCortex-A53 Quad-core 64-bit 2.0GHz high-performance processor | \n
| RAM+ROM | \n2GB+16GB | \n
| Expand memory | \nMicro SD(TF) Supports up to 128GB | \n
| System | \nAndroid 8.1 | \n
| Data communication | \n|
| WLAN | \nDual-band 2.4GHz / 5GHz,Supporting IEEE 802 a/b/g/n/ac protocol | \n
| WWAN | \n2G：GSM（850/900/1800/1900MHz） | \n
| 3G：WCDMA（850/900/1900/2100MHz） | \n|
| 4G：FDD:B1/B3/B4/B7/B8/B12/B20 | \n|
| TDD:B38/B39/B40/B41 | \n|
| Bluetooth | \nSupport Bluetooth5.0 \nTransmission distance 5-10 meters | \n
| GPS | \nSupport GPS, Galileo, Glonass, Beidou | \n
| Physical parameter | \n|
| Dimensions | \n178mm × 78mm × 24mm | \n
| Weight | \n＜500g | \n
| Display | \n5.0 inch IPS color display with resolution 720 x 1280 | \n
| TP | \nCorning Gorilla glass, supports multi-touch | \n
| Battery capacity | \nRechargeable polymer battery (3.7V 4800mAh) removable | \n
| Standby time >350 hours | \n|
| Working time > 12 hours | \n|
| Charging time ＜4H, using standard power adapter and data cable | \n|
| Expansion Card slot | \nPSAM x 2, Micro SIM card x 1 , TF card × 1、POGO Pin x 1 | \n
| Communication interface | \nType-C USB x 1, OTG | \n
| Audio | \nSpeaker (mono), Microphone, Receiver | \n
| Keypad | \n13 soft silicone buttons | \n
| Sensor | \nGravity sensor, Vibration motor | \n
| Language/input method | \n|
| Input | \nEnglish, Pinyin, Five strokes, Handwriting input, Support soft keypad | \n
| Language | \nLanguage packs in Simplified Chinese, Traditional Chinese, English, Korean, Japanese, Malaysian, etc. | \n
| Camera (Optional) | \n|
| Rear camera | \n8MP HD camera,Support auto focus, Flash, Anti-shake, Macro shooting | \n
| LF | \n|
| Frequency | \n134.2K | \n
| Protocol | \nISO11784/ISO11785/FDX-B Protocol | \n
| Distance | \n30mm ear tag：14cm ; 2.12 x 12mm glass tag：7cm | \n
| User environment | \n|
| Operating temperature | \n-20℃ - 55℃ | \n
| Storage temperature | \n-40℃ - 70℃ | \n
| Environment humidity | \n5%RH--95%RH(no condensation) | \n
| Drop specification | \n6 sides Supports 1.5 meters drops on the marble within the operating temperature | \n
| Rolling test | \n0.5m rolling for 6 sides, can still work steadily | \n
| Protection level | \nIP66 | \n
| Accessories | \n|
| Standard | \nAdapter, Data cable, Protective film, Instruction manual | \n
